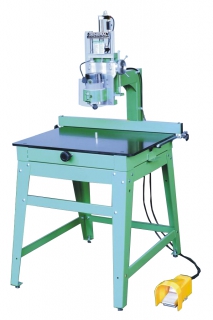

Over Arm Router

《Product Introduce 》：

Features

Base , arm ,stand built by steel structures , solid and strong ,provide steady and smooth operation.

Precise bushing and grinding bar with adjustable air flow control provide a smooth, vary speed up and down moving.

Six position pre-set stops at 20,40,60,80,100mm , each with 20mm micro adjustment.

Turntable design easy use and multi-depth setting for versatile creations.

Attached on Fence system with rules , 0-12” distance setting.

Phenolic table , clean , nice touch and long lasting.

Air blow is adjustable in direction and blow strength .

Fence with rules on both sides.

SPECIFICATIONS

Table		23.6" W x 30" D x 1/2” T( PHENOLIC)
		(600x765x15mm) ( MDF available)
Throat Capacity		18 ” (457mm) ( extendable to18.5” )
Overall Width		36” (914 mm)
Overall Depth		36” (914 mm)
Overall Height		31.5” (800mm)
Maximum Head Stroke		4.5” (115mm)
Maximum Distance Spindle to Table		9 ” (228.6 mm)
Maximum Distance Housing to Table		11” (280 mm)
Maximum Distance from center to fence		12” ( 304mm)
Pre-set Stop		20, 40, 60, 80, 100mm
		( Each with 20 mm Micro adjustment)
Router Adapter Sizes		3-1/4", 3-21/64”, 3-1/2", 4-13/64”
		(82mm, 85mm, 89mm, 106mm)
Router Housing Size		4-1/2" (114mm)
Table Insert Pins (3)		3/16”x1/4” , 5/16”x3/8”, 7/16”x1/2”
		(4.76x6.35 , 7.94x9.53 , 11.11x12.7mm)
Normal Operating Air Pressure		80 PSI
Maximum Air Pressure		100 PSI-
The Router Used		3/4”HP~3-1/2HP

Item #MR7009
